地址格式（address format）

不同国家，有不同的地址格式。不同的地址格式，不同的地址字段顺序，中国是从大到小，美国等拉丁语法一般是从小到大。

解决这个问题，依赖一下东西：

  1. （Query Address Data ） https://chromium-i18n.appspot.com/ssl-address

比如说，Armenia 国家，和美国的，通过配置如下：

  1.             'AM' => [
  2.                 'format' => "%givenName %familyName\n%organization\n%addressLine1\n%addressLine2\n%postalCode\n%locality\n%administrativeArea",
  3.                 'postal_code_pattern' => '(?:37)?\d{4}',
  4.                 'subdivision_depth' => 1,
  5.             ],
  6.             'US' => [
  7.                 'format' => "%givenName %familyName\n%organization\n%addressLine1\n%addressLine2\n%locality, %administrativeArea %postalCode",
  8.                 'required_fields' => [
  9.                     'addressLine1', 'locality', 'administrativeArea', 'postalCode',
  10.                 ],
  11.                 'uppercase_fields' => [
  12.                     'locality', 'administrativeArea',
  13.                 ],
  14.                 'administrative_area_type' => 'state',
  15.                 'postal_code_type' => 'zip',
  16.                 'postal_code_pattern' => '(\d{5})(?:[ \-](\d{4}))?',
  17.                 'subdivision_depth' => 1,
  18.             ],

添加其它地址字段

比如，我需要添加一个Building name 字段。

我们需要创建一个第三方模块，实现一个事件订阅机制，使得我们在地址格式中的“组织”后插入“Building name”字段:

  1. <?php
  3. namespace Drupal\mymodule\EventSubscriber;
  5. use Drupal\address\Event\AddressEvents;
  6. use Drupal\address\Event\AddressFormatEvent;
  7. use Symfony\Component\EventDispatcher\EventSubscriberInterface;
  9. /**
  10.  * Repurposes additional name field as building name.
  11.  */
  12. class BuildingNameEventSubscriber implements EventSubscriberInterface {
  14.   public static function getSubscribedEvents() {
  15.     $events[AddressEvents::ADDRESS_FORMAT][] = ['onAddressFormat'];
  16.     return $events;
  17.   }
  19.   public function onAddressFormat(AddressFormatEvent $event) {
  20.     $definition = $event->getDefinition();
  22.     // Place %additionalName after %organization in the format.
  23.     $format = $definition['format'];
  24.     $format = str_replace('%additionalName', '', $format);
  25.     $format = str_replace('%organization', "%organization\n%additionalName", $format);
  26.     $definition['format'] = $format;
  28.     $event->setDefinition($definition);
  29.   }
  31. }

然后，需要将事件订阅类应用在配置（mymodule.services.yml）里：

  1. services:
  2.   mymodule.subscriber:
  3.     class: Drupal\mymodule\EventSubscriber\BuildingNameEventSubscriber
  4.     tags:
  5.       - {name: event_subscriber}

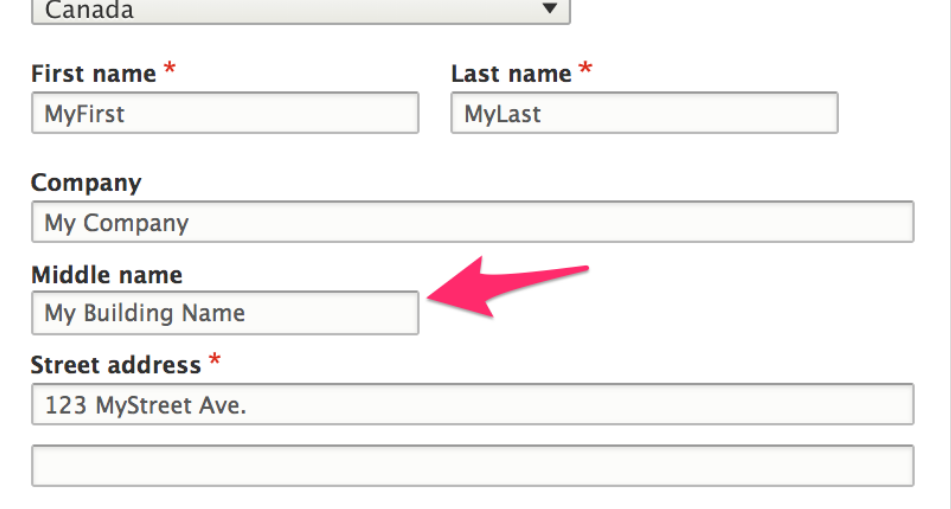

然后清一下缓存，就可以看到一个“Middle name”字段出现在地址表单里：

地址 - 图1

然后，我们需要把Middle name改成Building name,并且更改其文本字段大小以匹配公司文本字段，我们可以利用drupal的更名表单Hook,如下：

  1. <?php
  3. use Drupal\Core\Form\FormStateInterface;
  5. function mymodule_form_alter(&$form, FormStateInterface $form_state, $form_id) {
  6.   if (($form_id == 'profile_customer_edit_form') || ($form_id == 'profile_customer_add_form')) {
  7.     $form['address']['widget'][0]['address']['#after_build'][] = 'mymodule_customize_address';
  8.   }
  9. }
  11. function mymodule_customize_address($element, $form_state) {
  12.   $element['additional_name']['#title'] = t('Building name');
  13.   $element['additional_name']['#size'] = 60;
  15.   return $element;
  16. }

国家支持

Address module里使用了The Commerce Guys Addressing library库，默认支持250个国家地区选择。但是我们平时系统不需要那么多国家，如何处理？

下面举个例子如何指定我需要的国家。首先，需要得到国家的标准双字母代码（standard 2-letter codes），然后，通过事件订阅器的写法，具体事件是AddressEvents::AVAILABLE_COUNTRIES，去实现指定国家，比如我只需要5个国家： Australia, Brazil, Canada, Japan, and the United Kingdom.

  2. <?php
  4. namespace Drupal\mymodule\EventSubscriber;
  6. use Drupal\address\Event\AddressEvents;
  7. use Drupal\address\Event\AvailableCountriesEvent;
  8. use Symfony\Component\EventDispatcher\EventSubscriberInterface;
  10. class LimitCountriesEventSubscriber implements EventSubscriberInterface {
  12.   public static function getSubscribedEvents() {
  13.     $events[AddressEvents::AVAILABLE_COUNTRIES][] = ['onAvailableCountries'];
  14.     return $events;
  15.   }
  17.   public function onAvailableCountries(AvailableCountriesEvent $event) {
  18.     $countries = ['AU' => 'AU', 'BR' => 'BR', 'CA' => 'CA', 'GB' => 'GB', 'JP' => 'JP'];
  19.     $event->setAvailableCountries($countries);
  20.   }
  22. }

然后在自定义模块对应的services.yml引用进来，然后清缓存生效。

如何修改地址分支数据

通过事件订阅器，具体的事件是AddressEvents::SUBDIVISIONS,Address module的代码里有一个测试案例，可以看address/tests/modules/address_test/src/EventSubscriber/GreatBritainEventSubscriber.php.。

测试案例里，它想给英国国家添加一个县字段和一个预定义的县列表。

首先，实现AddressEvents::SUBDIVISIONS事件的订阅和腿脚方法onSubdivisions()

  1.   public static function getSubscribedEvents() {
  2.     $events[AddressEvents::SUBDIVISIONS][] = ['onSubdivisions'];
  3.     return $events;
  4.   }
  6.   public function onSubdivisions(SubdivisionsEvent $event) {
  7.     // For administrative areas $parents is an array with just the country code.
  8.     // Otherwise it also contains the parent subdivision codes. For example,
  9.     // if we were defining cities in California, $parents would be ['US', 'CA'].
  10.     $parents = $event->getParents();
  11.     if ($event->getParents() != ['GB']) {
  12.       return;
  13.     }
  15.     $definitions = [
  16.       'country_code' => $parents[0],
  17.       'parents' => $parents,
  18.       'subdivisions' => [
  19.         // Key by the subdivision code, which is the value that's displayed on
  20.         // the formatted address. Could be an abbreviation (e.g 'CA' for
  21.         // California) or a full name like below.
  22.         // If it's an abbreviation, define a 'name' in the subarray, to be used
  23.         // in the address widget dropdown.
  24.         'Anglesey' => [],
  25.         // You can optionally define an ISO 3166-2 code for each subdivision.
  26.         'Blaenau Gwent' => [
  27.           'iso_code' => 'GB-BGW',
  28.         ],
  29.         'Bridgend' => [],
  30.         'Caerphilly' => [],
  31.         'Cardiff' => [],
  32.         'Carmarthenshire' => [],
  33.         'Ceredigion' => [],
  34.         'Conwy' => [],
  35.         'Denbighshire' => [],
  36.         'Flintshire' => [],
  37.         'Gwynedd' => [],
  38.         'Merthyr Tydfil' => [],
  39.         'Monmouthshire' => [],
  40.         'Neath Port Talbot' => [],
  41.         'Newport' => [],
  42.         'Pembrokeshire' => [],
  43.         'Powys' => [],
  44.         'Rhondda Cynon Taf' => [],
  45.         'Swansea' => [],
  46.         'Tarfaen' => [],
  47.         'Vale of Glamorgan' => [],
  48.         'Wrexham' => [],
  49.       ],
  50.     ];
  51.     $event->setDefinitions($definitions);
  52.   }

如何限制地址可选

比如，我只想部分省份可以选，类似下面的方法实现。

使用hook：hook_form_alter()和#pre_render回调结合：

  1. function mymodule_form_alter(&$form, FormStateInterface $form_state, $form_id) {
  2.   if (($form_id == 'profile_customer_edit_form') || ($form_id == 'profile_customer_add_form')) {
  3.     $form['address']['widget'][0]['address']['#pre_render'][] = 'mymodule_prerender';
  4. }
  6. function mymodule_prerender($element) {
  7.   if ($element['country_code']['#default_value'] == 'US') {
  8.     $include_states = ['', 'NY', 'NJ', 'PA', 'DE', 'MD', 'DC', 'VA', 'WV'];
  9.     $options = array_intersect_key($element['administrative_area']['#options'], array_flip($include_states));
  10.     $element['administrative_area']['#options'] = $options;
  11. }
  12. return $element;
  13. }

强制修改地址字段覆盖值

有时候，部分地址字段无法通过drupal的配置去设置，那么可以通过hook来配置，具体的hook是hook_form_alter()

下面是给组织、地区和邮政编码字段属性设置覆盖值。

  1. <?php
  3. use Drupal\Core\Form\FormStateInterface;
  5. function mymodule_form_alter(&$form, FormStateInterface $form_state, $form_id) {
  6.   if (($form_id == 'profile_customer_edit_form') || ($form_id == 'profile_customer_add_form')) {
  7.     $form['address']['widget'][0]['address']['#field_overrides'] = [
  8.       'organization' => 'required',
  9.       'locality' => 'optional',
  10.       'postalCode' => 'hidden',
  11.     ];
  12.   }
  13. }

强制修改地址字段表单属性

在此示例中，我们将对Company字段属性进行以下自定义:将“Company”标签更改为“Organization”。将文本字段大小从60更改为30。*使字段属性成为必填项。

  1.   <?php
  3.   use Drupal\Core\Form\FormStateInterface;
  5.   function mymodule_form_alter(&$form, FormStateInterface $form_state, $form_id) {
  6.     if (($form_id == 'profile_customer_edit_form') || ($form_id == 'profile_customer_add_form')) {
  7.       $form['address']['widget'][0]['address']['#after_build'][] = 'mymodule_customize_address';
  8.     }
  9.   }
  11.   function mymodule_customize_address($element, $form_state) {
  12.     $element['organization']['#title'] = t('Organization');
  13.     $element['organization']['#size'] = 30;
  14.     $element['organization']['#required'] = TRUE;
  15.     return $element;
  16.   }

在本例中，我们将使用两个街道地址字段属性的单独标签来更改默认的“街道地址”标签

  1. function mymodule_customize_address($element, $form_state) {
  2.   dpm($element['#field_overrides']);
  3.   $element['address_line1']['#title'] = t('Address line 1');
  4.   $element['address_line2']['#title'] = t('Address line 2');
  5.   $element['address_line2']['#title_display'] = 'before';

地址 - 图2

设置地址初始值

将默认国家设置为澳大利亚，郊区设置为新南威尔士，城市设置为悉尼。

  1. <?php
  3. namespace Drupal\mymodule\EventSubscriber;
  5. use Drupal\address\Event\AddressEvents;
  6. use Drupal\address\Event\InitialValuesEvent;
  7. use Symfony\Component\EventDispatcher\EventSubscriberInterface;
  9. class AustraliaDefaultEventSubscriber implements EventSubscriberInterface {
  11.   public static function getSubscribedEvents() {
  12.     $events[AddressEvents::INITIAL_VALUES][] = ['onInitialValues'];
  13.     return $events;
  14.   }
  16.   public function onInitialValues(InitialValuesEvent $event) {
  17.     $initial_values = [
  18.       'country_code' => 'AU',
  19.       'administrative_area' => 'NSW',
  20.       'locality' => 'Sydney',
  21.     ];
  22.     $event->setInitialValues($initial_values);
  23.   }
  25. }

记得在yml服务里引用这个：

  1. services:
  2.   mymodule.australia_subscriber:
  3.     class: Drupal\mymodule\EventSubscriber\AustraliaDefaultEventSubscriber
  4.     tags:
  5.       - {name: event_subscriber}

隐藏国家字段

法1：创建一个个自定义地址字段格式化程序插件，扩展了默认的地址格式化程序

下面将创一个插件，将显示除美国以外的所有国家/地区的地址的国家/地区。

假设我们创建好了一个第三方模块，然后再创一个第三方插件，名为AddressHideUSFormatter:

  2. namespace Drupal\mymodule\Plugin\Field\FieldFormatter;
  4. use Drupal\address\Plugin\Field\FieldFormatter\AddressDefaultFormatter;
  6. /**
  7.  * Plugin implementation of the 'address_us_default' formatter.
  8.  *
  9.  * @FieldFormatter(
  10.  *   id = "address_us_default",
  11.  *   label = @Translation("Hide US"),
  12.  *   field_types = {
  13.  *     "address",
  14.  *   },
  15.  * )
  16.  */
  17. class AddressHideUSFormatter extends AddressDefaultFormatter {
  19. }

注意了，address_us_default是这个插件的唯一id，可以在注解里看到。重请缓存后，就可以看到我们的插件了：

地址 - 图3

然后，就可以给插件定制行为了，默认，插件有一个默认的方法可以覆写——postRender()，比如说写成这样：

  1. public static function postRender($content, array $element) {
  2.   /** @var \CommerceGuys\Addressing\AddressFormat\AddressFormat $address_format */
  3.   $address_format = $element['#address_format'];
  4.   $locale = $element['#locale'];
  5.   // Add the country to the bottom or the top of the format string,
  6.   // depending on whether the format is minor-to-major or major-to-minor.
  7.   if ($address_format->getCountryCode() == 'US') {
  8.     $format_string = $address_format->getFormat();
  9.   }
  10.   elseif (Locale::matchCandidates($address_format->getLocale(), $locale)) {
  11.     $format_string = '%country' . "\n" . $address_format->getLocalFormat();
  12.   }
  13.   else {
  14.     $format_string = $address_format->getFormat() . "\n" . '%country';
  15.   }
  17.   $replacements = [];
  18.   foreach (Element::getVisibleChildren($element) as $key) {
  19.     $child = $element[$key];
  20.     if (isset($child['#placeholder'])) {
  21.       $replacements[$child['#placeholder']] = $child['#value'] ? $child['#markup'] : '';
  22.     }
  23.   }
  24.   $content = self::replacePlaceholders($format_string, $replacements);
  25.   $content = nl2br($content, FALSE);
  27.   return $content;
  28. }

然后，补充相关依赖：

  1. use CommerceGuys\Addressing\Locale;
  2. use Drupal\Core\Render\Element;

这样，插件就大功告成了。

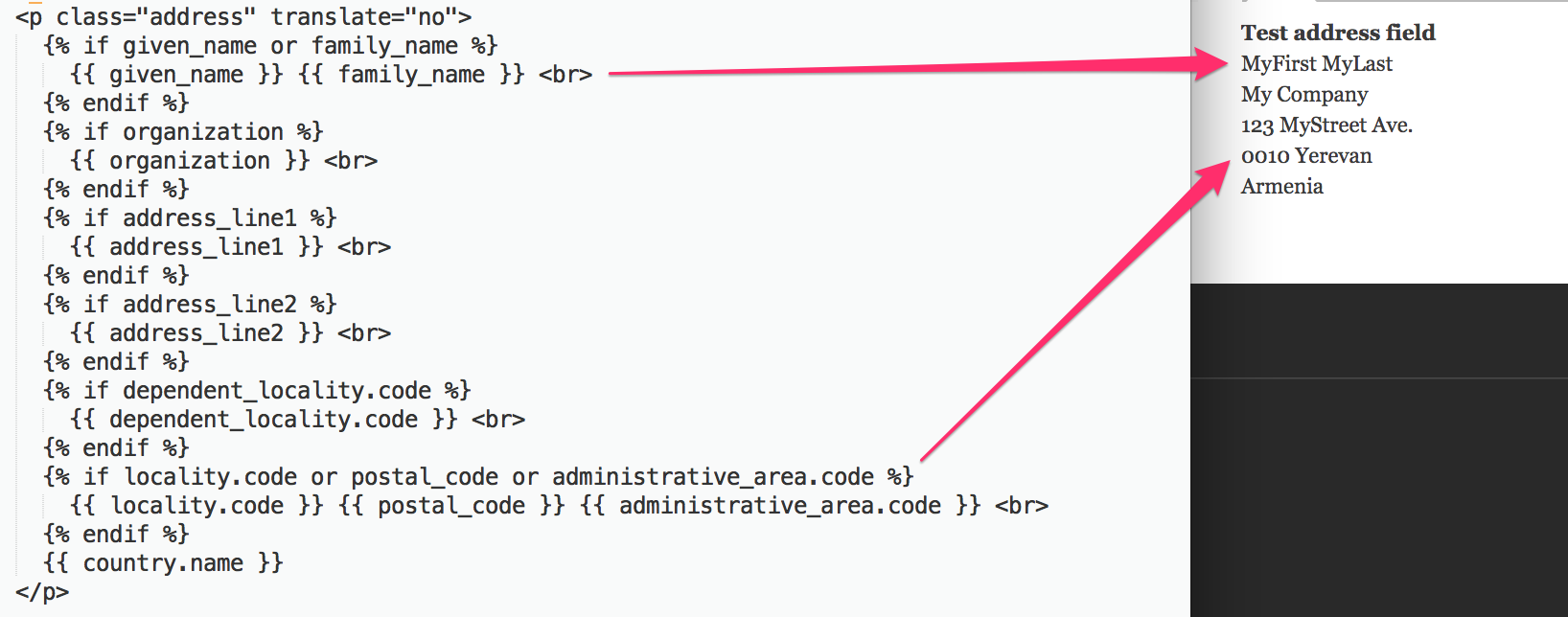

使用Plain address formatter 定制地址显示

如果想精准控制地址的布局，需要考虑这种方法。

这个方法，是通过twig模板的方法。

address-plain.html.twig

变量如下：

  1. given_name: 名称.
  2. additional_name: 其它名称
  3. family_name: 姓氏
  4. organization: 组织.
  5. address_line1: 第一地址行.
  6. address_line2: 第二地址行.
  7. postal_code: 邮政编码.
  8. sorting_code: 分类代码.
  9. country.code: 国家代码.
  10. country.name: 国家名称.

Subdivision 字段变量：

  1. dependent_locality: 从属地区.
  2. locality: 地区.
  3. administrative_area: 行政区域.

比如，下面需要将城市字段显示出来，如何处理？

地址 - 图4 可以在twig中，应该把上面的{{ locality.code }}改成{{ locality }}.

code和name如何选择？默认以code为高优先级。

  1. dependent_locality.code: 从属地区code.
  2. dependent_locality.name: 从属地区name.
  3. locality.code: 地区code.
  4. locality.name: 地区name.
  5. administrative_area.code: 行政区域 code.
  6. administrative_area.name: 行政区域 name.
